DRY CLEANING MACHINE SERIES

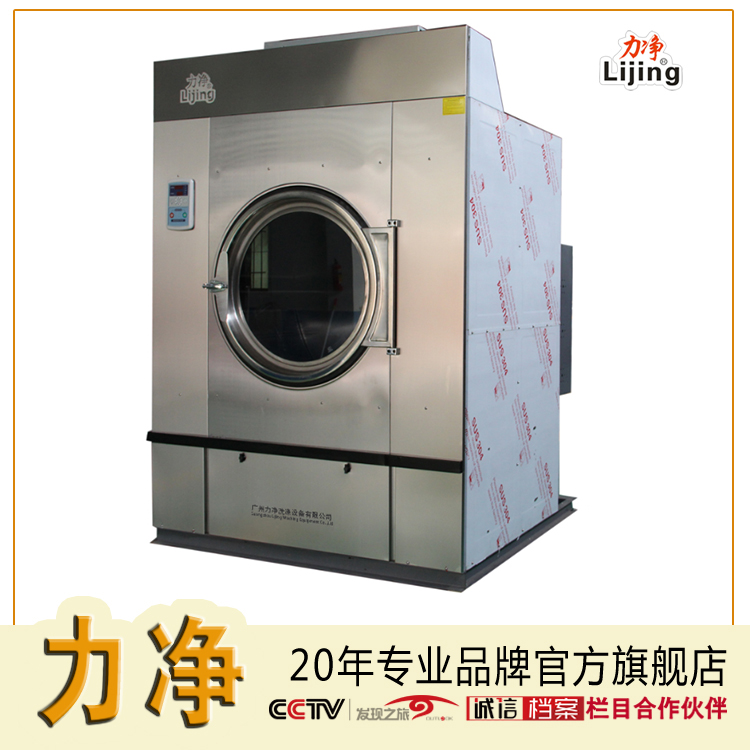

Industrial dryer HGQ/HGD/HGR series
Model: HGQ-10-100kg
View: 6924
Have requirements or questions? Please contact us:
+8613928870739
Washing equipment experts unriddling for you!


This series of industrial drying machine made of stainless steel, reduce fabric wear. Its outstanding advantages are:
1.An optimization design cooling and fan, large size heater, fast heat exchange and use of high-energy, fast heating, drying time is short.
2 High-density drum vents to ensure adequate heat through the linen, the cloth can be fully dried in the shortest possible time.
3 large diameter loading doors for easy loading and unloading clothes, door design uses overtake port design form, avoid pulling linen. Safety interlocks ensure fitted clothes door open state machine starts braking.
4 Computer control can be precisely set the time and drying temperature dryer, computer controller with touch-button design, flexible and reliable operation.
5 large plush collection network, anti-dust mesh machine, drawer-type structure, pull it out clean, large area to ensure the smooth flow of through-hole rate, large-diameter fan duct, it is not easy to plug plush, all in order ensure quick drying.


HGR series fully automatic gas dryer
Gas Dryer is our newly developed energy-saving products, ease of use, wide range of energy conservation. Its outstanding advantages are:
A high thermal efficiency, ease of use, the use of gas heating, low energy consumption, fast heat exchange and heat utilization is high.
2 High-density drum vents to ensure adequate heat through the linen, the cloth can be fully dried in the shortest possible time.
3 large diameter loading doors for easy loading and unloading clothes, door design uses overtake port design form, avoid pulling linen. Safety interlocks ensure fitted clothes door open state machine starts braking.
4 Computer control can be precisely set the time and drying temperature, computer controller with touch-button design, flexible and reliable operation.
5 large plush collection networks, anti-dust mesh machine, drawer-type structure, pull it out clean, large area to ensure the smooth flow of through-hole rate, large-diameter fan duct, it is not easy to plug plush, all in order ensure quick drying.
6 Use two V-belt gear transmission, low noise, small vibration, long working life, easy maintenance.


型 号 Model HG-15 HG-25 HG-35 HG-50 HG-70 HG-100
额定容量(KG
Rated capacity
15 25 35 50 70 100
加热方式
Heating method
Q/D/R S/E/G S/E/G S/E/G S/E/G S/E/G
滚筒直径(mm)
Roller diameter
Ф750 Ф970 Ф970 Ф1150 Ф1200 Ф1450
滚筒深度(mm)
Roller depth
670 650 900 970 980 1220
转筒速度(r/min)
drum speed
45 42 42 36 32 30
蒸汽压力(mpa)
steam pressure
0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
额定电压(V)
rated voltage
380 380 380 380 380 380
主电机功率(KW
motor power
0.55 0.75 0.75 1.1 1.1 2.2
风机功率(KW
fan power
0.55 0.75 0.75 1.5 1.1 1.5X2
加热功率(KW
heating power
14 24 32 35 44 50
燃气耗量(kw)
gas consumption
2 2.5 3.5 4.5 4.5 4.5
进蒸汽口径(mm)
steam inlet
DN32 DN32 DN32 DN32 DN32 DN32
疏水口径(mm)
Hydrophobic caliber
DN25 DN25 DN25 DN25 DN50 DN50
压缩空气接口口径(mm)
Compressed air interface
Ф6 Ф6 Ф6 Ф6 Ф6 Ф6
排风管口径(mm)
Exhaust duct diameter
Ф160 Ф170 Ф170 Ф200 Ф275 Ф275
外形尺寸(宽)mm
Dimension (with)
840 1060 1060 1240 1600 1625
外形尺寸(深)mm
Dimension(depth)
1150 1150 1450 1600 1780 1810
外形尺寸(高)mm
Dimension (height)
1560 1950 1950 2150 2500 2510
重量(KG
Weight
380 450 520 650 1000 1400
型号说明:Q-蒸汽加热,D-电加热,R-燃气
Model Note: Q: steam heating, D-electric heating, R-gas heating
